Ceramic Reflector for Cynosure Laser Head

Ceramic Reflector for Cynosure Laser Head

This Ceramic Reflector is designed for the laser systems of Cynosure's laser. Each set consists of one upper and one lower plate, with perforated ceramic plates at both ends. The material is 99.7% high-purity alumina (Al₂O₃) with an unglazed surface.

Standard parts are available in stock, please contact if you need.
For custom fabrication, you are welcome to inquire!

High reflectance of Ceramic Reflector
• Excellent dielectric strength
• Superior corrosion resistance
• Exceptional thermal stability
• High strength and hardness
• Inherent cleanliness

Physical Properties of Ceramic Reflector
Material:99.7% Al2O3
Color:White
Bulk density (fired):3.1 g/cm3
Porosity (apparent), nominal 22%
Flexural strength (ASTM C1161, 3-point) 170 MPa
Thermal expansion coefficient 200-500℃, 7.9*10-6/C，200-1000℃, 9.0*10-6/C

Application of Ceramic Reflector

Cynosure Ceramic YAG Cavity
Cynosure Alex ELITE+
Cynosure Ceramic Alex Elite Plus

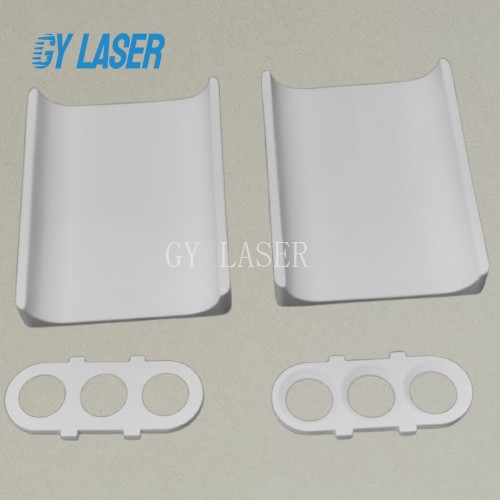

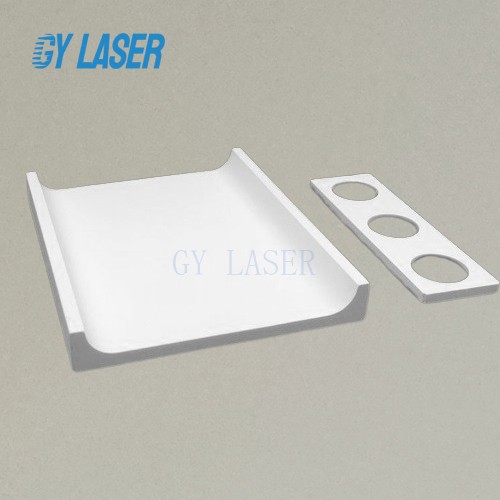

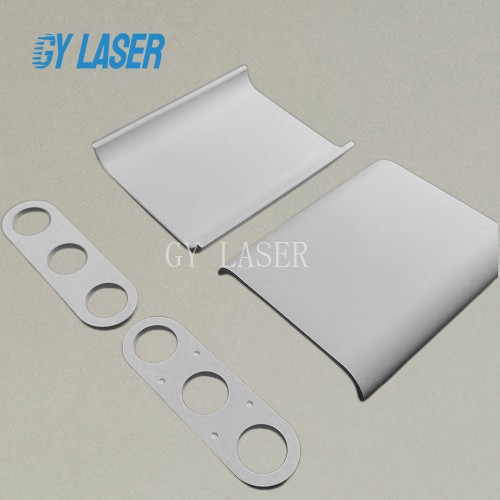

Product Show of Ceramic Reflector
