Factory Supply Optical CaF2 Infrared Calcium Fluoride Protective Window

Factory Supply Optical CaF2 Infrared Calcium Fluoride Protective Window

Calcium Fluoride(CaF2) Windows
Calcium fluoride(CaF2) crystals are widely used as window, lens, prism, beam splitter and substrate materials from vacuum UV to mid-infrared wavelengths because of their high transmittance and very high laser damage threshold in the deep UV region. High purity calcium fluoride single crystals are good window materials for excimer lasers in the vacuum UV band.
They are commonly used as protective devices for electronic sensors, optical lenses, and laser processing heads.

Coating:AR coating @400-700nm, 600-1050nm, 1050-1650nm

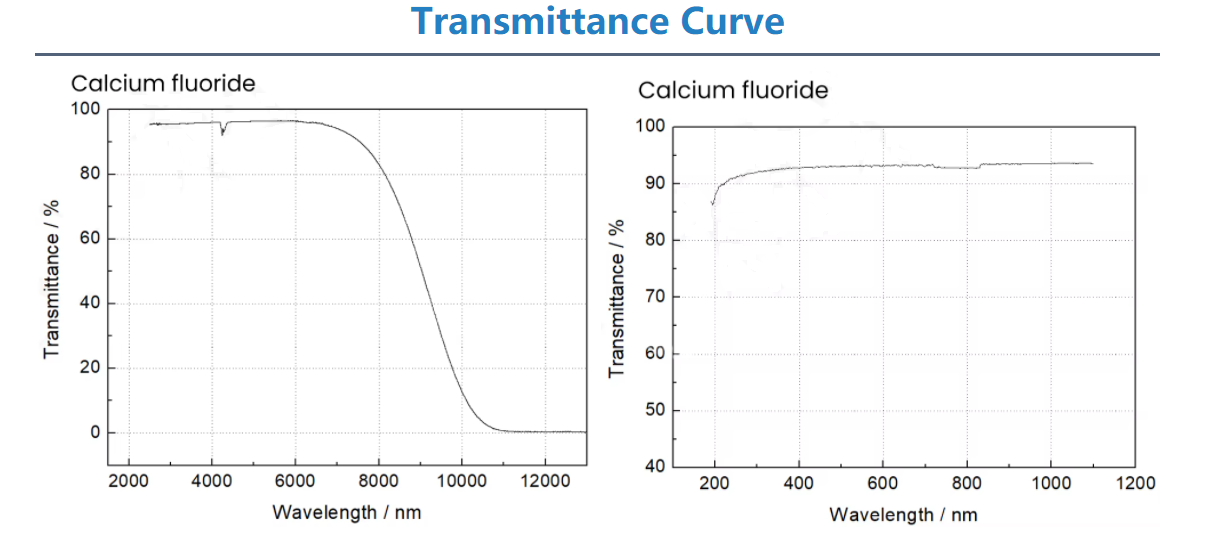

Transmittance Curve of Infrared Calcium Fluoride Protective Window
