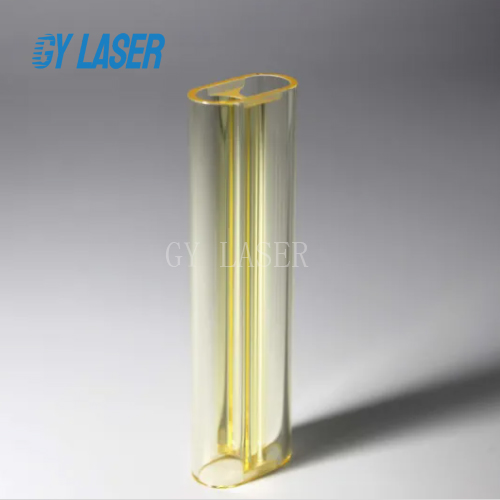

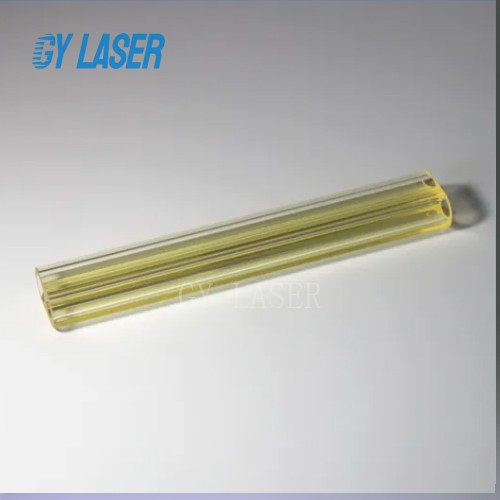

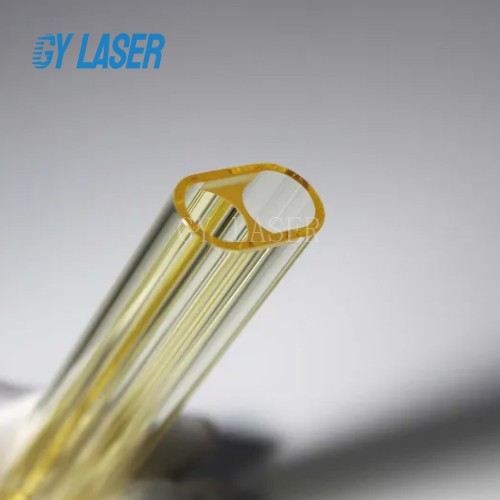

Samarium Doped Flow Tube For High-Power Laser Cavity

Samarium Doped Flow Tube For High-Power Laser Cavity

Category： Laser Flow Tube and Plate
Material:Samarium Doped Glass
Surface:Polished or Grind
Tolerance:±0.05mm
Aplication:High Power Laser Head
Product description：Samarium Doped Flow Tube For High-Power Laser Cavity,The 10% samarium doped glass flow tube can block all UV light below 400nm, it is very good UV filter for High-Power Laser Cavity.,We can provides c
INQUIRY

Samarium Doped Flow Tube For High-Power Laser Cavity

The 10% samarium doped glass flow tube can block all UV light below 400nm, it is very good UV filter for High-Power Laser Cavity.

Specification of Samarium Doped Flow Tube：
Outer diameter:10mm-30mm
Thickness of wall:1-5mm

Tolerance ±0.1 to ±0.05mm
Length:20mm-250mm
Other size can make according the drawing.

Surface Polished or grind

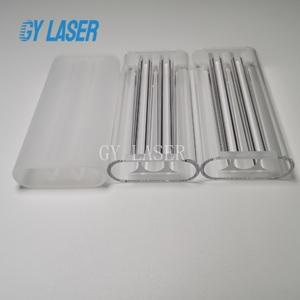

We can provides custom machined laser cavity filters and multi-hole laser flow tubes in a variety of different materials as below:
Cerium-doped Quartz
Schott Samarium Doped Glass S7005 (5% Sm), S7010 (10% Sm)
UV Fused Silica
Fused Quartz
Schott Borofloat 33
Pyrex Glass
Borosilicate Glass
Corning HPFS 7979, 7980, 8655 Quartz Glass

Product Features of Samarium Doped Flow Tube:
High precision and good shape
Block all UV light below 400nm
Excellent performance and function

Application of Samarium Doped Flow Tube:
Laser flow tubes in water cooled lamp pumped lasers.
Used in laser head
Solid laser device filter in medical
