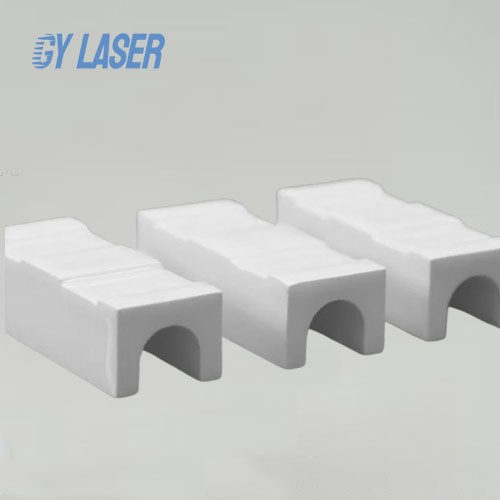

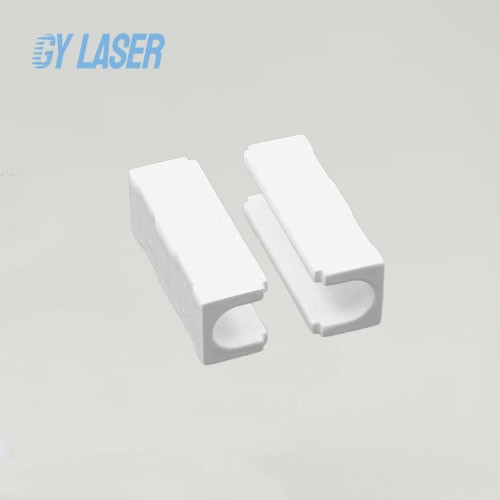

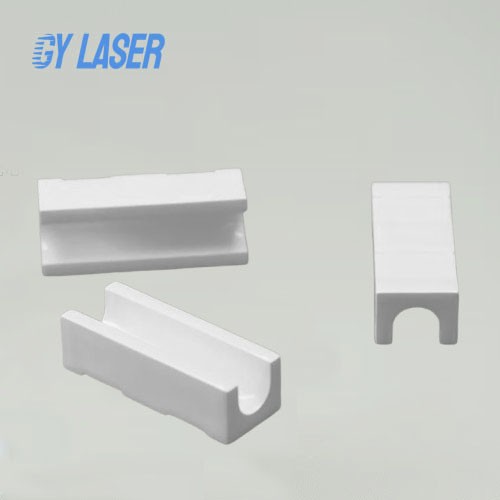

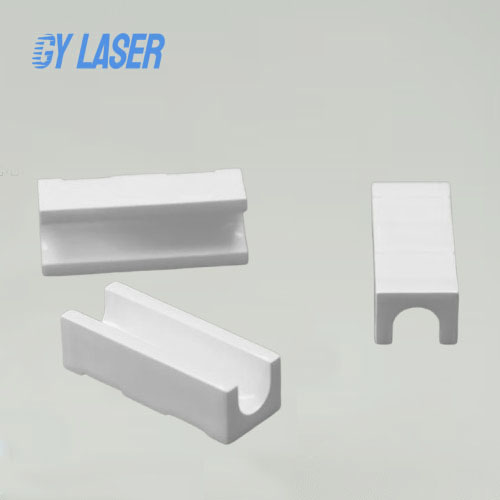

Alumina Al2O3 Ceramic Laser Cavity Reflector For Alma Laser

Alumina Al2O3 Ceramic Laser Cavity Reflector For Alma Laser

The alumina Al2O3 ceramic laser cavity reflector green body is made of 99% Al2O3, and the green body is fired at an appropriate temperature to retain proper porosity and proper green strength. The surface of the reflector is fully coated with high-reflectivity ceramic glaze. Compared with the gold-plated reflector, the biggest advantage lies in its extremely long service life and diffuse reflection.

Main Features
1. Dimensional tolerance in height direction can achieve tolerance ≤1.0mm, other dimensional tolerances can reach ≤0.5mm
2. The surface is fully glazed to achieve maximum reflectivity and easy to clean
3. The reflectivity reaches 97% at the wavelength of 600-1000nm
4. The reflectivity exceeds 95% in the wavelength range of 380-1100nm
5. The body has proper porous and high strength characteristics

Applications:

Alma Laser
Beauty Devices
Solid State and CO2 Laser Systems
Cynosure Laser
Quanta System Machine
IPL Device for Medical Aesthetic
Nd:YAG welding system
Laser Cutting Welding
Dilas Diode Laser Pump Modules
