Surface Glazed Alumina Laser Cavity Ceramic Diffuser Reflector for Alma Arion II

Surface Glazed Alumina Laser Cavity Ceramic Diffuser Reflector for Alma Arion II

The glazed alumina laser cavity 99.7% Al2O3 content, used extensively for long-life laser reflectors. This material is sintered at high
temperatures to achieve a controlled porosity.

Physical Properties of Alumina Laser Cavity
Color:White
Bulk density (fired):3.1 g/cm3
Porosity (apparent), nominal 22%
Flexural strength (ASTM C1161, 3-point) 170 MPa
Thermal expansion coefficient 200-500℃, 7.9*10-6/C，200-1000℃, 9.0*10-6/C

Applications of Ceramic Diffuser Reflector:

Alma Arion II Laser
Ceramic Reflectors Used for Lamp-pumped Solid-state Lasers
Ceramic Reflectors Used for Diode-pumped Solid-state Lasers
Ceramic Reflectors Used for Beauty and IPL Applications

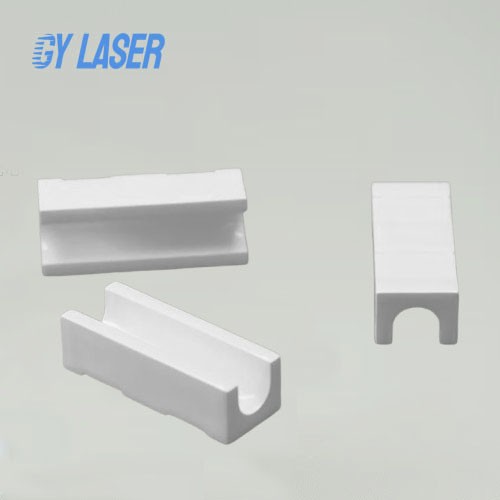

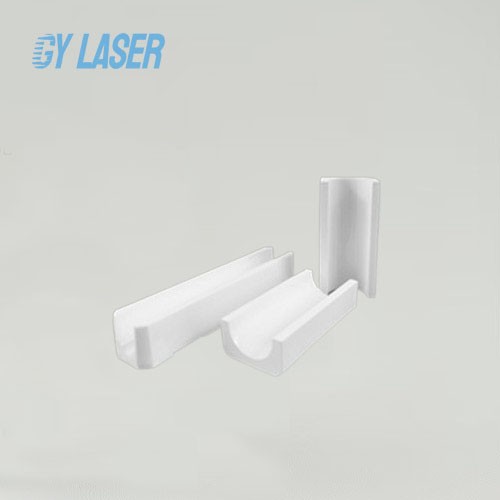

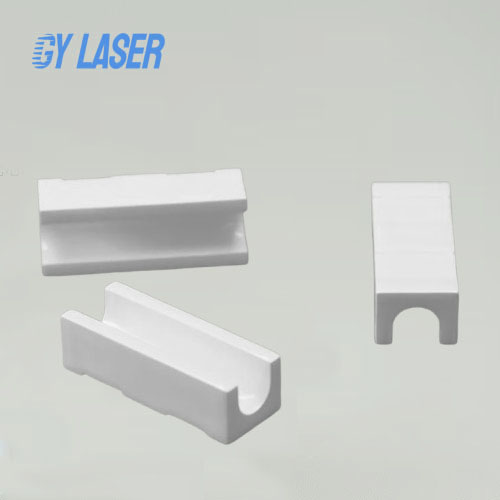

Picture of Ceramic Diffuser Reflector
