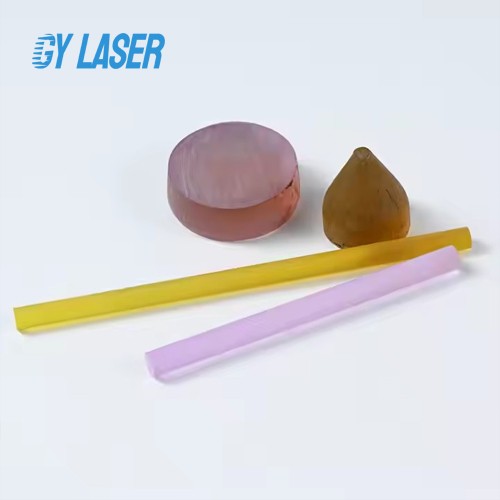

Factory supply Ar Coated @1064nm ND YAG Crystal Rod for Laser Welding and Cutting Machine

Category： Laser Crystal
Chemical Formula：Nd:Y3Al5O12
Clear Aperture:>95%
Wavefront Distortion：λ/10 per inch @632.8nm
Aplication:Suitable for different modes of operation (cw, pulsed , Q-switched, Mode locked, doubling of frequency )
Product description：Factory Custom High Quality 1064nm Optical Glass Ruby Crystal Rod Lens for Yag Laser. Good Selling Customized Coating Optical Laser Crystal Rod Cylindrical Lens for Optical Equipment
INQUIRY

Product Details:

Factory supply Ar Coated @1064nm ND YAG Crystal Rod for Laser Welding and Cutting Machine
Nd:YAG, Nd:YLF and Nd:YVO4 crystals are ideal for solid state lasers used in welding, cutting and micro-machining applications.

Specification:

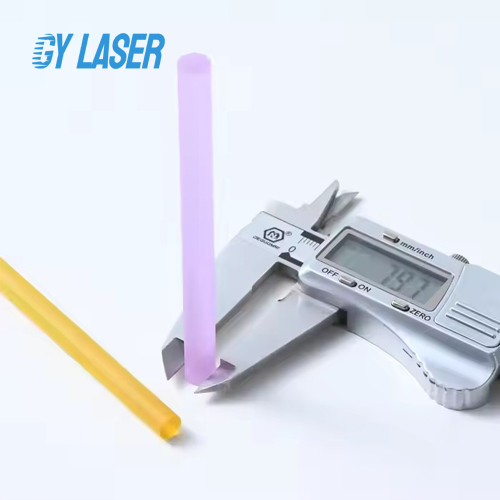

Rod size:3 - 30mm in diameter (+0.0,-0.05);
Length:1 - 300mm in length(+/-0.5);
Slabs:(3-50)mm Length *(3-8)mm Width *(30-200)mm Height;
Nd dopant concentration:0.3% - 1.1%;

Surface Polishing;

Advantages of Nd:YAG crystals
High gain
Low threshold
High efficiency
Low loss
Suitable for different modes of operation (cw, pulsed , Q-switched,
Mode locked, doubling of frequency )
Suitable for high-average power lasers
Good thermal conductivity and thermal shock characteristics
Large mechanical strength
High optical quality
