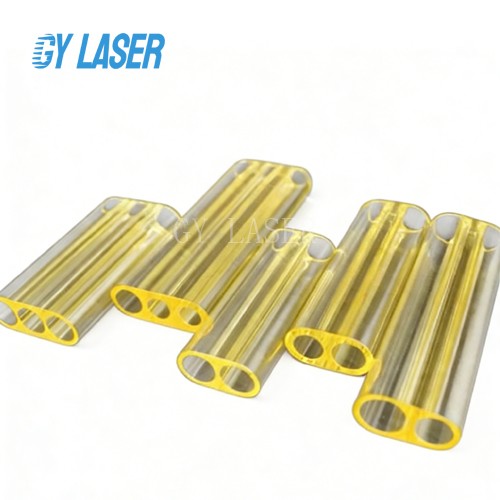

Samarium Doped Glass Triple Bore Flow Tubes for Aesthetic Laser

Category： Laser Flow Tube and Plate
Material:Samarium doped glass
Surface:Polished
Tolerance:±0.05mm
Aplication:Aesthetic Laser
Product description：Samarium Doped Glass Triple Bore Flow Tubes for Aesthetic Laser 10 % Doping of Samarium Oxide Silicate Glass Flow Tubes are used as filter media in the laser cavity of flashlamp pumped solid-state l
INQUIRY

Samarium Doped Glass Triple Bore Flow Tubes for Aesthetic Laser

10 % Doping of Samarium Oxide Silicate Glass Flow Tubes are used as filter media in the laser cavity of flashlamp pumped solid-state laser systems. Flow Tube stransmit the ideal pumping bands while filtering undesired UV radiation and parasitic lasing. The Flow Tubes improve beam amplification in a highly efficient way and safely protect the laser medium from solarization and heat.

Specification

Parameter	Specification
Samarium Oxide (Sm₂O₃) Doping Concentration	5%, 10%, 20% (customizable)
Coefficient of Thermal Expansion (CTE)	10.4×10⁻⁶/K (room temperature to 300℃)
Refractive Index (ND)	1.5755
Softening Point	526℃
Annealing Point	470℃
Wall Structure	Single wall (high precision, uniform thickness),Two hole,Three hole
Optical Transmittance	High transmittance in working wavelength range (customizable per requirements)
