Samarium Doped Glass Triple Bore Flow Tubes for Cynosure Laser

Samarium Doped Glass Triple Bore Flow Tubes for Cynosure Laser

Category： Laser Flow Tube and Plate
Material:Samarium doped glass
Surface:Polished
Tolerance:±0.05mm
Aplication:Cynosure Laser C3 and C6
Product description：Samarium Doped Glass Triple Bore Flow Tubes for Cynosure Laser
INQUIRY

Samarium Doped Glass Triple Bore,Samarium Doped Glass Flow tube

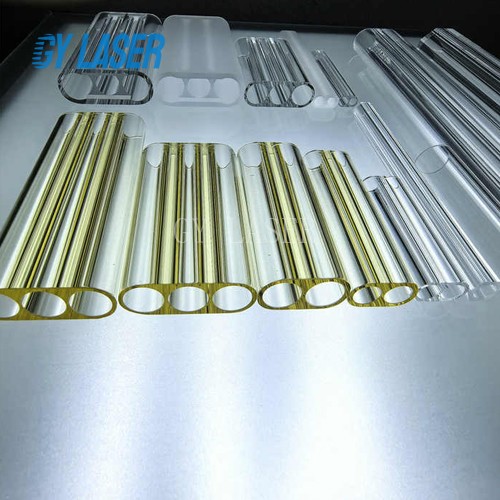

This triple bore laser flow tube is made of 10% samarium doped glass. It is used for Nd:YAG Pump Chamber.
The samarium doped glass can absorb ultraviolet light generated by krypton lamps, as well as 1064nm near-infrared light. It can effectively improve the reliability,lifespan,and laser radiation efficiency of laser components.

Parameter	Specification
Samarium Oxide (Sm₂O₃) Doping Concentration	5%, 10%, 20% (customizable)
Coefficient of Thermal Expansion (CTE)	10.4×10⁻⁶/K (room temperature to 300℃)
Refractive Index (ND)	1.5755
Softening Point	526℃
Annealing Point	470℃
Wall Structure	Single wall (high precision, uniform thickness),Two hole,Three hole
Optical Transmittance	High transmittance in working wavelength range (customizable per requirements)
